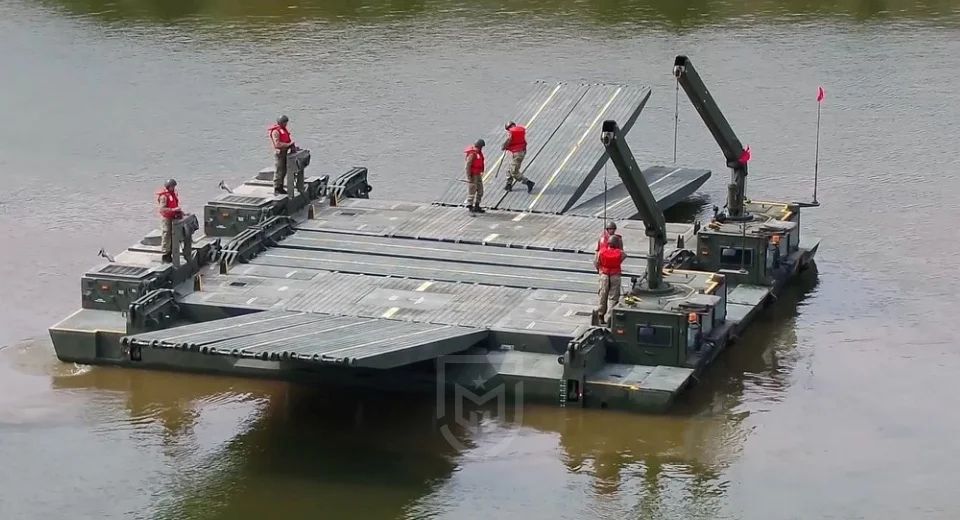

The SAMUR System was developed to meet one of the most critical requirements of modern land warfare: rapid and uninterrupted crossing of water obstacles. Rivers, canals, flooded terrain, and destroyed infrastructure can significantly slow down mechanized formations. SAMUR eliminates this vulnerability through an advanced, self-deploying floating bridge concept.

Operational Role and Purpose

SAMUR’s primary role is to support maneuver forces during offensive and defensive operations by enabling fast river and water obstacle crossings. It allows forward elements and follow-on forces to maintain momentum, even under hostile conditions.

Doctrine and Concept of Use

• Support to armored and mechanized maneuver units
• Offensive and counter-offensive operations
• Sustaining logistics and rear-area mobility
• Emergency bridge deployment during natural disasters such as floods

Unlike conventional fixed bridging systems, SAMUR emphasizes mobility, speed, and independence.

Platform Architecture

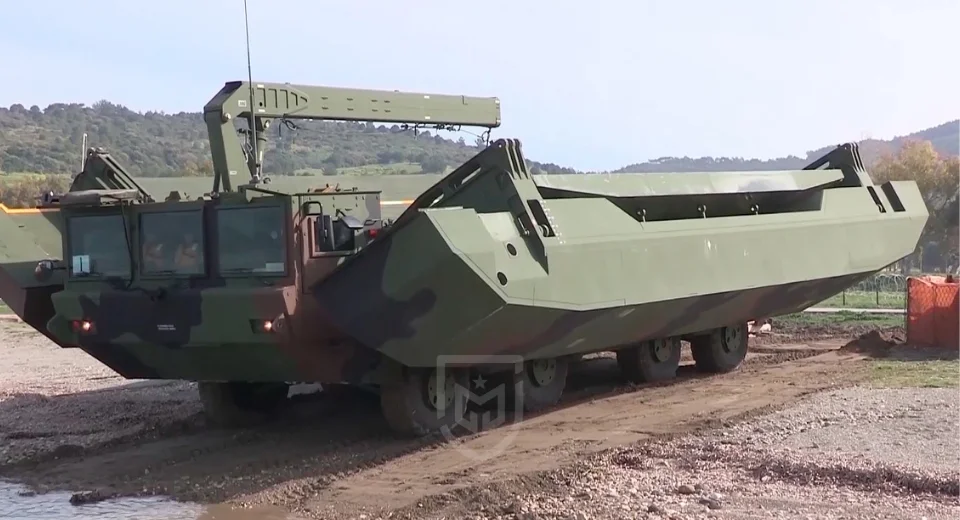

SAMUR is built on a dedicated 8x8 amphibious vehicle platform featuring:

• All-wheel drive and all-axle steering
• Adjustable suspension and variable ground clearance
• Integrated flotation structure
• Hydraulically controlled bridge deployment and recovery system

This architecture allows operations on soft, muddy terrain with minimal site preparation for water entry and exit.

Mobility and Terrain Performance

Thanks to its 8x8 drivetrain, SAMUR provides:

• Up to 60% gradient climbing capability
• 30% side slope operation
• 0.5 m vertical obstacle crossing
• 2 m trench crossing

Short axle distances and all-axle steering ensure excellent maneuverability in confined areas.

Survivability and Protection

SAMUR is protected in accordance with STANAG 4569 ballistic protection standards and includes:

• CBRN (Chemical, Biological, Radiological, Nuclear) protection system
• NBC-compatible air conditioning system
• Armored crew compartment

These features ensure sustained operation in combat environments.

Multi-Role Capability

Beyond military use, SAMUR is designed for:

• Flood response operations
• Emergency evacuation routes
• Temporary infrastructure restoration

This dual-use capability enhances overall national response flexibility.

Detailed Technical Information

Dimensions and Weight

• Length: 13 m
• Width: 3.5 m
• Height: 3.95 m
• Combat weight: 36,000 kg
• Crew: 3 personnel

Powertrain

• Engine: Diesel (exact model and output not publicly disclosed)
• Transmission: Fully automatic, 7 forward + 1 reverse

Performance

• Maximum road speed: 76 km/h
• Speed in water: 10 km/h
• Operational range: Over 600 km

Suspension and Mobility

• Adjustable ground clearance: 0 – 0.65 m
• All-wheel drive and steering

Electrical System

• Batteries: 2 × 12 V / 120 Ah
• Alternators: 2 × 140 A, brushless, self-excited

Protection Systems

• Ballistic protection: STANAG 4569 compliant
• CBRN protection: Available
• Note: Bridge load classification (MLC) and maximum carrying capacity are not publicly disclosed.

Frequently Asked Questions

What is SAMUR used for?

• SAMUR is a mobile floating assault bridge system that enables military units to cross water obstacles rapidly without stopping operations.

How long does bridge deployment take?

• Exact deployment time is not publicly disclosed, but systems in this class typically operate on a minutes-scale timeline.

What vehicles can cross the bridge?

• The exact Military Load Classification (MLC) is not publicly available, but it is designed to support armored and wheeled combat vehicles.

Is SAMUR mobile or fixed?

• SAMUR is fully mobile and mounted on an 8x8 amphibious platform.

Is it only for military use?

• No. SAMUR can also be used for disaster relief, especially during floods and infrastructure collapse scenarios.

How does SAMUR compare to its counterparts?

• SAMUR stands out by combining high off-road mobility, amphibious performance, and ballistic protection on a single platform.

Sources

• FNSS official product brochures and public presentations
• FNSS defense exhibitions and announcements
• Publicly available Turkish Armed Forces information
• Open-source defense industry analysis platforms
