The KUNDUZ Amphibious Armored Combat Engineering Vehicle is purpose-built to enhance the mobility and survivability of mechanized and armored formations. Unlike civilian-derived construction machinery, KUNDUZ is fully protected and optimized to operate within the combat zone, enabling engineering tasks to be executed without withdrawing to the rear.

Operational Role and Mission Profile

KUNDUZ is intended to remove natural and man-made obstacles that impede maneuver forces. Typical missions include terrain shaping, embankment construction, riverbank preparation, access route opening, and soil stabilization during amphibious or wet-gap crossing operations. It also supports defensive doctrine by enabling trenching, berm construction, and protective earthworks.

Doctrine and Concept of Employment

The platform is designed to operate in:

Amphibious and river-crossing operations

Bridgehead and beachhead preparation

Forward obstacle clearance for armored units

Combat engineering under direct or indirect fire

KUNDUZ is doctrinally positioned to operate in the same formation and tempo as main battle tanks and armored combat vehicles, rather than lagging behind as a rear-area support asset.

Platform Architecture

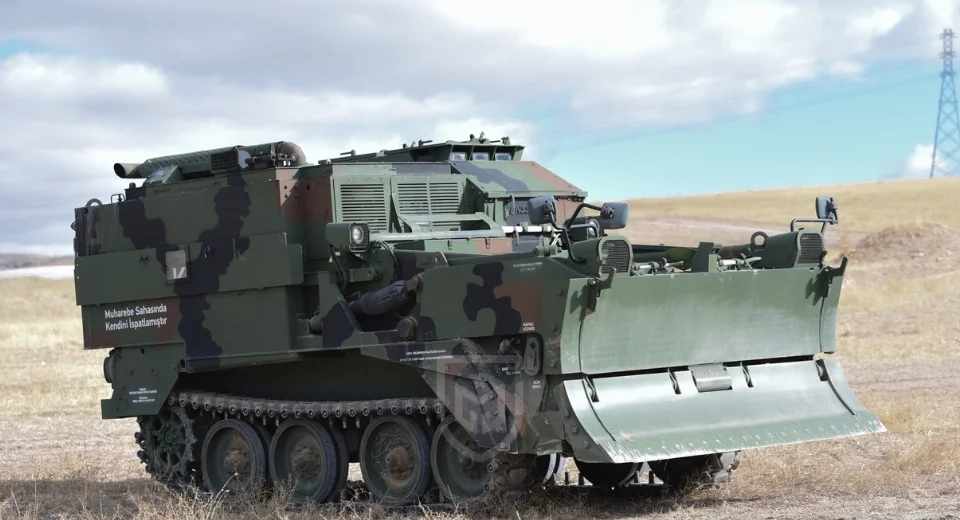

The vehicle is built on a tracked, high-load-bearing chassis incorporating a front-mounted fixed dozer blade, a centrally located ballast compartment, a hydraulically adjustable suspension system, and a fully enclosed armored crew cabin. Hull form and propulsion are optimized for amphibious operations without extensive preparation.

Survivability and Protection

KUNDUZ is protected in accordance with STANAG 4569 ballistic and mine protection standards (exact protection levels are not publicly disclosed). Survivability is further enhanced by smoke grenade launchers, an automatic fire suppression system, and an integrated CBRN protection suite.

Precision and Responsiveness

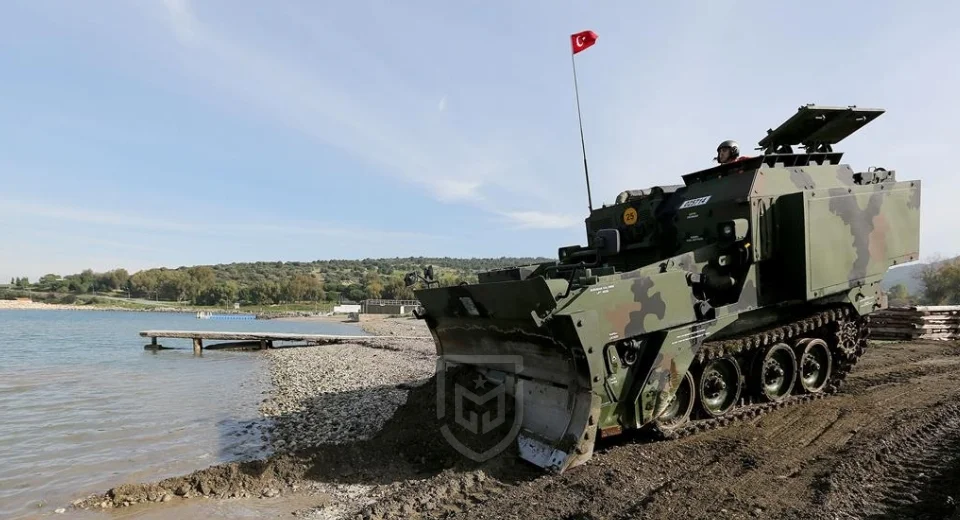

Thanks to its special hydraulic suspension, the vehicle can raise or lower its front section, ensuring optimal blade or ballast-ground contact. This enables precise excavation and dozing, both while stationary and on the move, significantly reducing task completion time under combat conditions.

System Integration and Ecosystem

KUNDUZ is designed to operate alongside amphibious armored vehicles, military bridging systems, and combat engineering units. Detailed information regarding digital command-and-control integration has not been publicly released.

Assessment Against Modern Threats

Key Advantages

• Fully armored and amphibious engineering capability
• Adjustable ballast system for improved traction and stability
• Ability to operate directly on the frontline

Limitations

• Unarmed platform with limited self-defense capability
• Mission set focused exclusively on engineering tasks
• No organic air defense or counter-UAS systems

Variants and Service Status

No officially announced variants, blocks, or modernization packages have been disclosed. Public information regarding deliveries or active service status remains limited.

Detailed Technical Information

Dimensions and Weight

• Combat weight: 19,500 kg
• Length: 6.2 m
• Width: 3.3 m
• Height: 3.2 m

Powertrain

• Diesel engine
• Fully automatic transmission

(Engine output and manufacturer are not publicly disclosed)

Performance

• Maximum road speed: 45 km/h
• Operational range: approx. 400 km
• Maximum gradient: 60%
• Side slope capability: 30%
• Maximum swimming speed: 8.6 km/h

Obstacle Negotiation

• Vertical obstacle: 0.4 m
• Trench crossing: 1.5 m
• Pivot steering capability

Sensors and Vision

• Standard driver vision system
• Advanced EO/thermal sensor details are not publicly available

Engagement Capability

• No integrated weapon system

Mission Equipment

• Fixed front dozer blade
• Ballast compartment with ground-fill and discharge capability
• Recovery winch

Command and Control

• Digital C2 integration details not publicly disclosed

Electronic Warfare Resistance

• Information not publicly available

Deployment and Logistics

• Tracked configuration optimized for soft, muddy, and swamp terrain

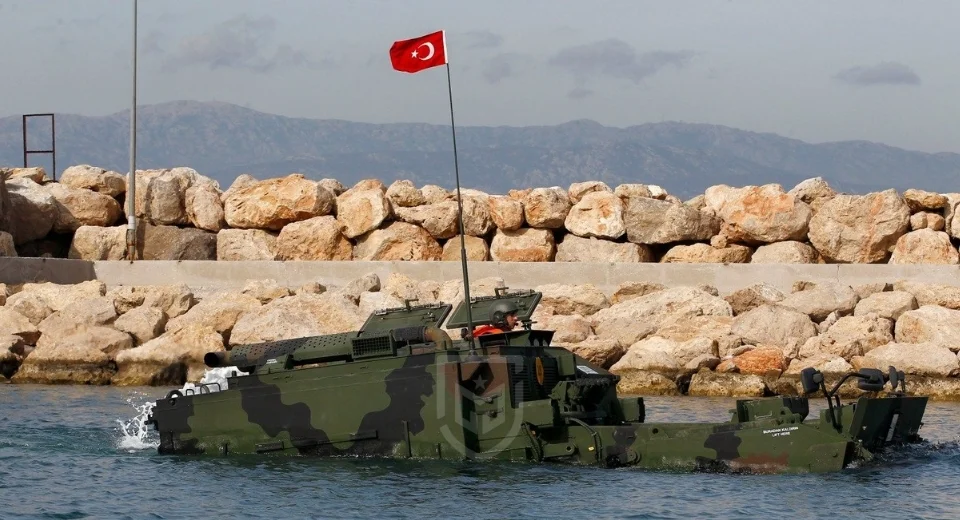

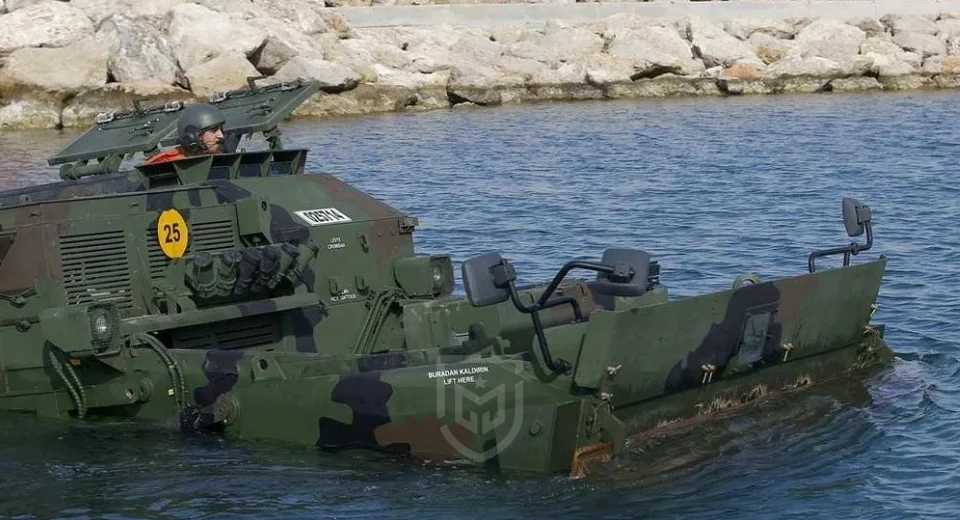

• Amphibious operations without extensive pre-mission preparation

Crew

• 2 personnel (driver and operator)

Frequently Asked Questions

What is the primary role of KUNDUZ?

• KUNDUZ conducts combat engineering tasks such as excavation, dozing, terrain shaping, and route preparation under armored protection.

What makes KUNDUZ unique?

• Its combination of armored protection, full amphibious capability, and an onboard ballast system capable of adjusting vehicle weight during operations.

How does amphibious capability enhance operations?

• It allows seamless river and wet-gap crossings without external engineering support, accelerating maneuver operations.

What threats is it protected against?

• KUNDUZ provides STANAG 4569-compliant ballistic and mine protection, though exact levels remain classified.

Is the vehicle armed?

• No. KUNDUZ is an engineering asset and does not carry an organic weapon system.

Are there comparable systems?

• Very few platforms globally combine amphibious capability, armored protection, and ballast-equipped engineering functionality in a single vehicle.

Sources

• FNSS official product information
• Defense industry exhibitions and IDEF presentations
• Open-source defense publications
• Publicly available technical brochures
