Operational Purpose and Role

TMR-II Çetin is designed to eliminate direct human exposure to danger during operations such as explosive ordnance disposal (EOD), suspicious object inspection, remote intervention, and close-range reconnaissance.

Its primary mission profile focuses on safely accessing areas that are unsafe, inaccessible, or structurally unstable for personnel.

Doctrine and Concept of Use

The platform follows the lightweight, rapidly deployable mini-UGV doctrine, emphasizing simplicity, mobility, and cost-effectiveness. Typical usage scenarios include:

• Urban operations
• Indoor and semi-indoor environments
• Industrial facilities
• Debris-covered or uneven terrain
• It is intended for single-operator control, enabling rapid deployment and immediate mission execution.

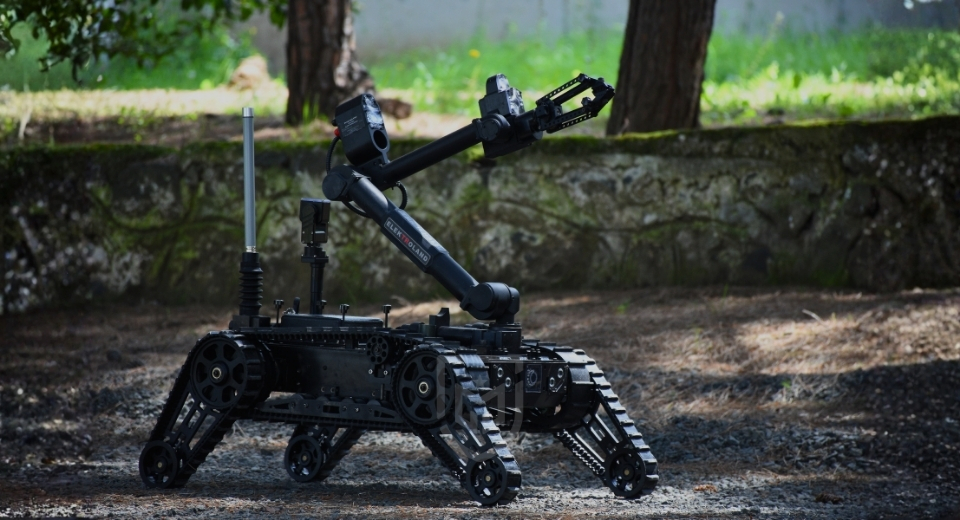

Platform Architecture

TMR-II Çetin consists of an integrated architecture combining:

• A tracked mobile chassis
• An electromechanical manipulator arm
• A rotating turret structure
• Front and rear visual cameras
• Wireless and wired command-and-control interface

Mobility and Survivability Approach

The tracked drive system provides strong traction on surfaces such as rubble, gravel, soil, and concrete.

The vehicle is not armored; survivability is achieved through stand-off operation, compact size, and reduced visual signature rather than passive or active protection systems.

Precision, Reaction, and Intervention

The multi-axis manipulator arm with a 360° rotating gripper allows precise handling of ground-level and elevated objects.

Real-time video transmission supports rapid operator decision-making during sensitive tasks.

Integration and System Ecosystem

TMR-II Çetin is designed primarily as a stand-alone platform.

Publicly available sources do not indicate NATO-standard C2 or open-architecture network integration. Payload or sensor integration is possible through manufacturer-specific solutions.

Evaluation Against Modern Threats

Advantages:

• Significantly reduces personnel risk
• High effectiveness in confined spaces
• Low logistical footprint and operating cost

Limitations:

• Not intended for armed combat roles
• No ballistic protection or active defense systems
• Control range is limited by mini-UGV class constraints

Variants and Operational Status

No publicly disclosed variants, block upgrades, or modernization packages are available.

Inventory and delivery data have not been publicly released.

Detailed Technical Information

Dimensions and Weight

• Dimensions: 68 × 65 × 38 cm
• Weight: 42 kg

Power and Propulsion

• 24V DC electric motor
• Tracked propulsion system

Performance

• Maximum speed: 3 km/h
• Endurance: up to 2 hours
• Climb capability: 45° slope
• Obstacle clearance: 20 cm
• Trench crossing: 35 cm

Payload and Manipulator

• Payload capacity: < 25 kg
• Manipulator lifting capacity: 10 kg
• Turret rotation: 180°
• Arm joint movement: 201°
• Gripper rotation: 360°

Sensors and Observation

• Front and rear driving cameras
• Video and photo recording capability
• Thermal imaging: not publicly disclosed

Command and Control

• 250 m wireless control range
• 100 m wired control range
• Touchscreen control unit with external joystick

Electronic Warfare Resistance

• Anti-jamming / EW protection: not publicly disclosed

Deployment and Logistics

• Portable by a small team
• Rapid deployment capability
• No special vehicle or lifting equipment required

Operator Countries

Confirmed Operators

• No publicly confirmed users disclosed

Potential / Under Evaluation

• No publicly available information

Manufacturing Countries and Companies

• Prime contractor: Elektroland (Türkiye)
• Subcontractors and imported components: not publicly disclosed

Frequently Asked Questions

What is TMR-II Çetin used for?

It is used for remote reconnaissance, inspection, and intervention in hazardous areas, particularly in EOD and suspicious object handling missions.

What is its control range?

Up to 250 meters wirelessly and 100 meters via wired control.

What types of targets can it handle?

Suspicious packages, explosive devices, hazardous objects, and items located in hard-to-reach areas.

Is it armed?

No. TMR-II Çetin is an unarmed unmanned ground vehicle.

Is it mobile or stationary?

It is a fully mobile tracked platform.

Where can it be deployed?

Urban environments, indoor spaces, industrial facilities, and rough terrain.

What are its equivalents?

Systems such as the iRobot PackBot fall into a comparable category; TMR-II Çetin stands out as a compact, domestically developed alternative.

Sources

• Elektroland official product information
• Public defense industry publications (2022–2026)
• Open-source technical descriptions
