Operational Role and Mission Profile

The Otokar ISV is engineered to support security forces during internal security, riot control, counter-terrorism support, and high-risk urban operations. Its primary role is to ensure protected mobility for personnel operating in hostile environments where threats may include small arms fire, thrown objects, barricades, and aggressive crowds.

The vehicle is particularly optimized for law-enforcement and gendarmerie-type missions, where survivability, visibility, and controlled use of force are equally critical.

Doctrine and Concept of Use

ISV fits into internal security doctrine as a protected presence and intervention platform. It is deployed for:

• Crowd control and riot suppression
• High-risk personnel transport
• Area domination and checkpoint security
• Urban security operations
• Support to counter-terrorism units

The water cannon variant expands this doctrine by providing non-lethal crowd dispersal capabilities, reducing reliance on direct physical engagement.

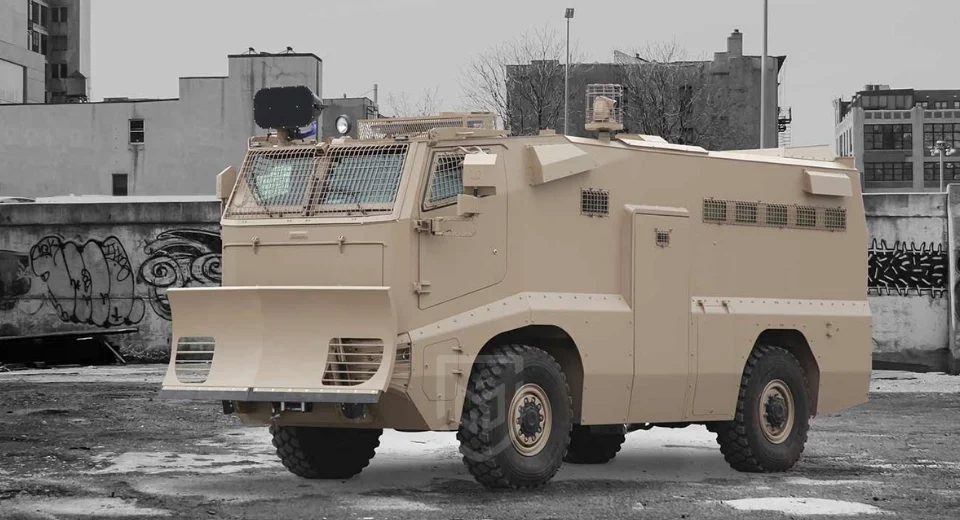

Platform Architecture

The ISV is built around a monocoque armored hull with a high ground clearance and a permanent 4×4 drivetrain. Its architecture integrates:

• Armored crew and troop compartment
• High-visibility window layout for situational awareness
• Heavy-duty suspension optimized for urban and off-road use
• Modular rear mission section (personnel, command, or water cannon)

The exterior design deliberately avoids protrusions, preventing hostile elements from climbing onto the vehicle.

Situational Awareness and Maneuverability

The interior layout ensures that personnel can observe the surrounding environment from multiple angles. Large armored windows and optional camera systems allow continuous monitoring of threats and crowd movement.

High power-to-weight ratio, permanent all-wheel drive, and generous approach/departure angles enable the ISV to maneuver effectively over obstacles, curbs, debris, and uneven terrain.

Survivability and Protection Concept

The ISV provides high ballistic protection against small arms and fragmentation threats, combined with reinforced protection against impacts and thrown objects.

Specific ballistic levels are not publicly disclosed, but the vehicle is designed to meet modern internal security survivability requirements.

Optional systems include:

• Run-flat tires
• Fire suppression systems
• Positive pressure / NBC filtration (optional)

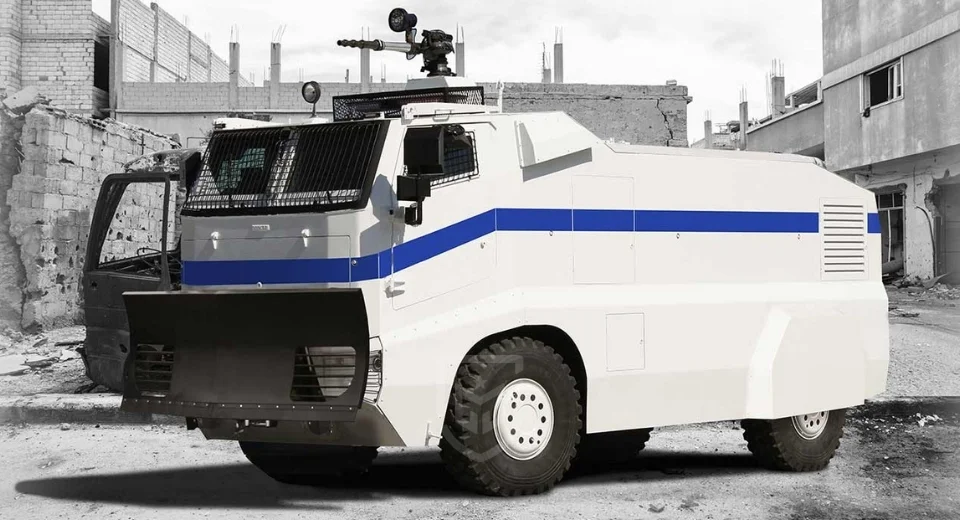

Water Cannon Version – Riot Control Configuration

The water cannon variant features an armored front cabin for the driver and operator. The rear mission module houses a high-capacity water cannon system powered by an auxiliary engine, independent of the main drivetrain.

The water tank and system components are protected by high-strength steel, ensuring resistance against stones, Molotov cocktails, and other thrown objects. The system allows precise and controlled application of water, foam, dye, or gas additives for graduated crowd-control response.

Detailed Technical Information

Dimensions and Weight

• Gross Vehicle Weight: approx. 19,000 kg
• Length: approx. 7,700 mm (configuration dependent)
• Width: approx. 2,590 mm
• Height: approx. 3,850 mm
• Ground Clearance: approx. 380 mm

Powertrain and Mobility

• Engine: Turbocharged diesel, approx. 440 hp
• Transmission: Automatic, 12 forward / 2 reverse gears
• Drive System: Permanent 4×4 with differential locks

Performance

• Maximum Speed: approx. 100 km/h (electronically limited)
• Operational Range: approx. 600 km
• Gradient Capability: approx. 60%
• Side Slope: approx. 30%
• Vertical Obstacle: approx. 380 mm
• Trench Crossing: approx. 600 mm
• Fording Depth: approx. 850 mm

Protection and Crew Systems

• Armor: High ballistic and impact protection (exact levels not public)
• Visibility: Large armored windows, optional camera systems
• Climate Control: Heavy-duty HVAC, optional NBC protection
• Crew Capacity: Up to 16 personnel depending on configuration

Water Cannon System (Water Cannon Variant)

• Water Tank Capacity: approx. 6,000 liters
• Auxiliary Engine: approx. 100 hp
• Effective Range: up to approx. 50 m
• Operating Pressure: approx. 8–12 bar
• Nozzle Control: Electrically driven, remote-controlled
• Additive Tanks:
  • Gas: ~60 L
  • Dye: ~60 L
  • Foam: ~80 L

Frequently Asked Questions

What is the main purpose of the Otokar ISV?

• The ISV is designed to safely transport security personnel and support public-order operations in high-risk environments, including riots and urban unrest.

Is the ISV a military vehicle?

• While armored to military standards, the ISV is primarily intended for internal security and law-enforcement roles, rather than frontline combat.

What types of missions can it perform?

• Personnel transport, riot control, command and control, high-risk patrols, and urban security missions.

How effective is the water cannon system?

• The system allows precise, long-range, and controlled application of water and additives, enabling graduated response without lethal force.

Is the vehicle mobile in urban terrain?

• Yes. The 4×4 drivetrain, high ground clearance, and strong power-to-weight ratio allow effective movement through debris, barricades, and uneven city terrain.

What makes ISV different from standard APCs?

• Unlike military APCs, the ISV is optimized for law-enforcement doctrine, emphasizing visibility, deterrence, non-lethal capability, and crowd interaction.
