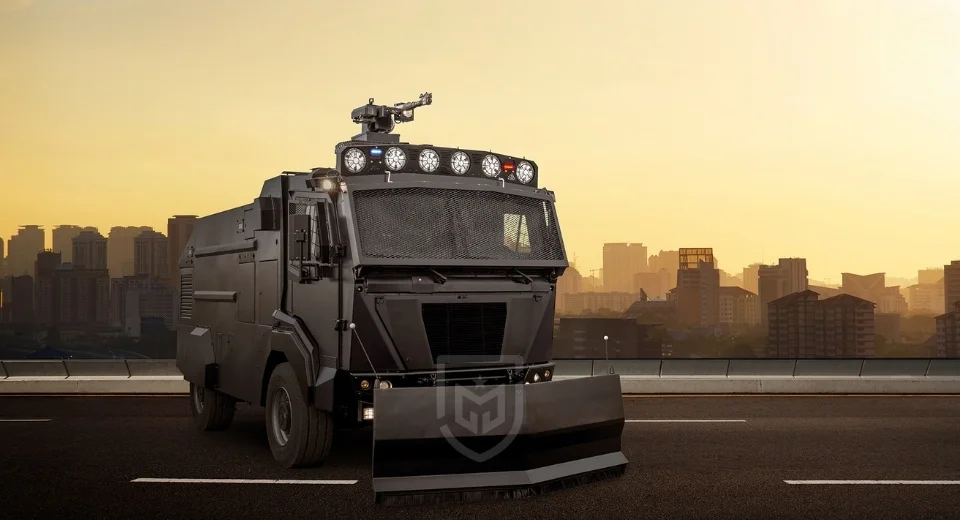

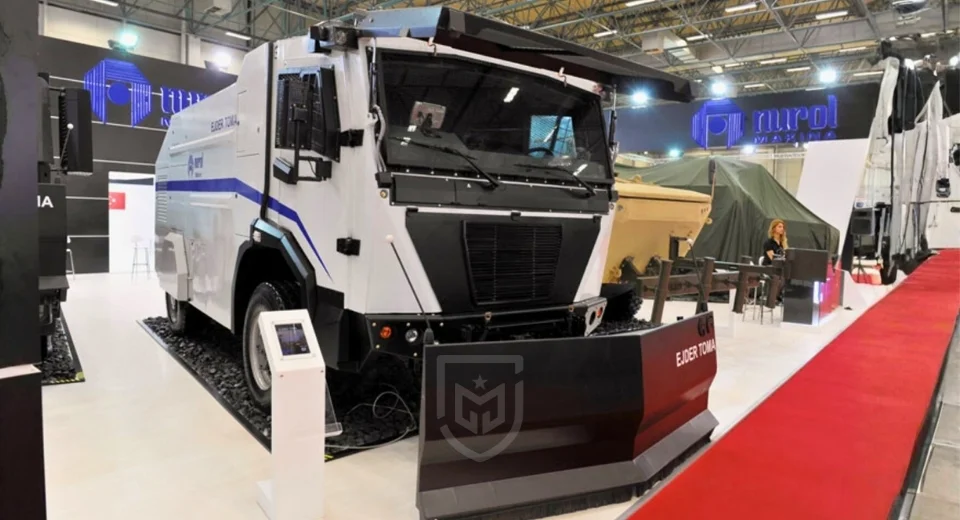

EJDER TOMA has been developed to meet modern internal security requirements by combining high mobility, crew protection, and scalable non-lethal intervention capabilities. Leveraging Nurol Makina’s extensive experience in military vehicle design, the platform adapts armored vehicle standards to public order missions, emphasizing durability, survivability, and operational continuity.

Operational Purpose and Role

The vehicle is designed for riot control, crowd dispersal, barricade clearing, area dominance, and maintaining security in sensitive regions such as borders. It enables controlled and proportionate response through non-lethal means such as water, gas, dye, and foam.

Doctrine and Concept of Use

EJDER TOMA fits the doctrine of graduated response. It supports deterrence through visibility and announcements, area suppression with high-pressure water, individual or group marking with dye, and dispersion using gas or foam mixtures, all controlled from within the protected cabin.

Platform Architecture

• Chassis: Proprietary military chassis with fully independent suspension
• Mobility: 4x4 drivetrain optimized for urban and off-road operations
• Superstructure: Armored cabin, multi-tank layout, water cannon turret
• Command & Control: Fully integrated in-cabin control systems

Survivability and Protection

• Self-contained ballistically protected cabin
• Positive-pressure cabin against gas threats
• Wire mesh protection for the windshield
• Fire-retardant paint and automatic fire suppression systems
• Emergency escape provisions for the crew

Accuracy, Reaction, and Effectiveness

The Nurol Makina–designed water cannon provides an effective range of approximately 60 meters, with vertical coverage from -15° to +60°. Real-time directional control ensures precise application, while self-cleaning lines prevent corrosion and clogging during prolonged operations.

Integration and System Ecosystem

The vehicle can be equipped with integrated camera and recording systems, public address and siren units, 360-degree situational awareness, day/night vision, and optional long-range acoustic deterrent systems.

Advantages and Limitations

Advantages

• High level of crew protection
• Multi-effect payload capability (water, gas, dye, foam)
• Strong mobility in both urban and rough terrain

Limitations

• Not intended for combat against armed military threats
• Some performance parameters are not publicly disclosed

Variants and Modernization

EJDER TOMA can be configured according to customer requirements in terms of tank layout, sensor packages, and cabin arrangements. Detailed block or variant information is not publicly available.

Operational Use and Inventory

The vehicle is known to be in service with Turkish internal security forces. Export customers and quantities have not been publicly disclosed.

Detailed Technical Information

Dimensions and Weight

• Not publicly disclosed

Powertrain

• Diesel engine (exact specifications not publicly disclosed)
• 4x4 drivetrain with off-road transmission

Performance

• Maximum speed, operational range, and climbing ability: not publicly disclosed
• Water cannon effective range: ~60 meters

Sensors and Surveillance

• Multi-camera system
• Optional 360-degree surround view
• Optional day/night vision systems

Target Detection and Tracking

• Operator-controlled visual targeting
• Automatic tracking features are not publicly disclosed

Engagement and Control

• Remotely controlled water cannon operated from inside the cabin
• Real-time aiming and directional control

Payload / Effectors

• Water
• Water mixed with tear gas
• Water mixed with dye
• Foam

Command, Control, and Data

• In-cabin control panels
• Multi-channel video recording system

Electronic Warfare Resistance

Not publicly disclosed (internal security platform)

Deployment and Mobility

• High maneuverability
• Hydraulic dozer blade for barricade removal
• Capability to draw water from lakes and wells

Crew and Operation

• Crew size: not publicly disclosed
• All systems operable from within the protected cabin

Frequently Asked Questions

What is EJDER TOMA used for?

• It is used for crowd control, riot intervention, barricade clearing, and maintaining public order using non-lethal methods.

What is its effective range?

• The water cannon system has an effective range of approximately 60 meters. Vehicle operational range is not publicly disclosed.

What types of targets is it effective against?

• It is designed for use against crowds and obstacles, not against armored or military combat targets.

Is it mobile or static?

• EJDER TOMA is fully mobile, featuring a 4x4 drivetrain suitable for urban and rural environments.

What level of armor protection does it have?

• The cabin is ballistically protected; detailed armor levels are not publicly disclosed.

How does it differ from other TOMA vehicles?

• It stands out with its military-grade chassis, higher protection levels, indigenous water cannon system, and flexible multi-effect payload configuration.
