Operational Purpose and Role

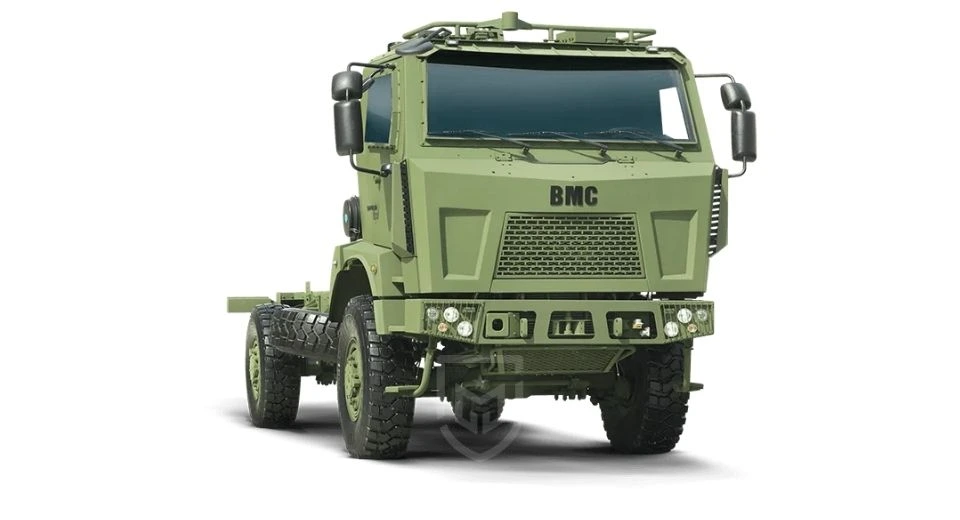

The BMC EFE 4x4 5 Ton is a tactical logistics platform designed to support maneuver units at brigade and battalion levels. Its primary function is not only cargo transportation but also acting as a mobile carrier for mission modules, weapon systems, communication shelters, and supply payloads.

Vehicles in the 5-ton class fill a critical gap between light tactical vehicles and heavy-duty military trucks. This segment is essential for:

• Forward supply and ammunition transport
• Tactical troop and equipment movement
• Rapid deployment operations
• Mobile launcher or sensor platform integration
• Field sustainment in expeditionary operations

Doctrine and Concept of Employment

The EFE 4x4 operates as a modular, mission-adaptable logistics vehicle. It can be configured as:

• General cargo carrier
• Personnel logistics vehicle
• Container transport platform
• Fuel or water tanker
• Weapon or radar carrier platform

The 4x4 drivetrain provides high off-road mobility with:

• 60% gradient climbing capability
• 30% side slope capability
• 1000 mm fording depth

These characteristics allow sustained operations in asymmetric warfare environments, rough terrain, and undeveloped infrastructure zones.

Platform Architecture

The vehicle is built around a high-torque diesel powertrain optimized for durability and low-speed torque delivery:

• Cummins 6-cylinder turbo diesel engine
• Allison 3000 automatic transmission
• AxleTech transfer case and axle system
• Rigid 4x4 drivetrain configuration

The automatic transmission reduces driver fatigue and improves maneuverability under load.

The 24V electrical system, compliant with MIL-STD-1275, allows safe integration of military communication and mission equipment.

Survivability and Protection

The standard configuration is an unarmored logistics variant. However, survivability enhancements include:

• Optional run-flat tires
• Central Tire Inflation System (CTIS)
• Self-recovery winch

Armored cabin configurations are not publicly confirmed and may be project-specific.

Performance and Mobility

• Maximum speed: 100 km/h
• Operational range: 800 km
• Fording depth: 1000 mm
• Ground clearance: 400 mm
• Approach angle: 35°

These parameters allow the vehicle to operate effectively in rugged environments, river crossings, and off-road scenarios.

Integrated Systems and Ecosystem

The EFE 4x4 platform is suitable for integration with:

• Tactical communication systems
• Mobile radar units
• Rocket or missile launcher systems (as carrier platform)
• Containerized mission modules

Specific integrated systems are not publicly disclosed.

Advantages and Limitations in Modern Threat Environment

Advantages:

• High torque output (925 Nm)
• Automatic transmission
• Long operational range
• MIL-STD environmental compliance
• Modular mission adaptability

Limitations:

• Standard version is not armored
• No publicly confirmed active protection or integrated electronic warfare systems

Detailed Technical Specifications

Dimensions and Weight

• Curb weight: 8,100 kg
• Payload capacity: 7,900 kg
• Gross vehicle weight: 16,000 kg
• Length: 8,570 mm
• Height: 3,150 mm
• Wheelbase: 4,800 mm
• Seating capacity: 3 personnel

Powertrain

• Engine: Cummins 6ISBe 245 (Euro 3)
• Power output: 180 kW (245 PS)
• Torque: 925 Nm
• Displacement: 10.8 liters
• Cylinders: 6

Transmission and Drivetrain

• Transmission: Allison 3000 automatic, 6 forward / 1 reverse
• Transfer case: AxleTech BT600
• Axles: AxleTech 4000 series rigid axles

Mobility Performance

• Maximum speed: 100 km/h
• Range: 800 km
• Gradient: 60%
• Side slope: 30%

Braking and Tire System

• Full air-operated drum brake system
• Air-controlled spring parking brake
• Optional ABS
• 14.00 R20 tires
• Optional run-flat and CTIS

Electrical System

• 24V negative chassis
• 4 × 12V 120Ah batteries
• 70A alternator
• MIL-STD-1275 compliant

Environmental Compliance

• MIL-STD-810G compliant
• Operating temperature range: -32°C to +49°C

Frequently Asked Questions

What is the BMC EFE 4x4 5 Ton used for?

• It is primarily used for tactical logistics missions including cargo transport, supply delivery, and modular mission system carriage.

What is its operational range?

• The vehicle has an operational range of approximately 800 km.

Is it armored?

• The standard configuration is not armored. Armored variants are not publicly confirmed.

What terrain can it operate in?

• It can climb 60% gradients, sustain 30% side slopes, and ford water up to 1000 mm deep.

How much payload can it carry?

• It offers a payload capacity of approximately 7,900 kg within a 16-ton gross vehicle weight configuration.

Can it carry weapon systems?

• Yes, as a platform vehicle it can carry modular weapon, radar, or mission systems, though specific integrations are not publicly detailed.

What are its equivalents internationally?

• It falls into the NATO 5-ton 4x4 tactical truck category, competing with similar medium logistics platforms used by various armed forces.
