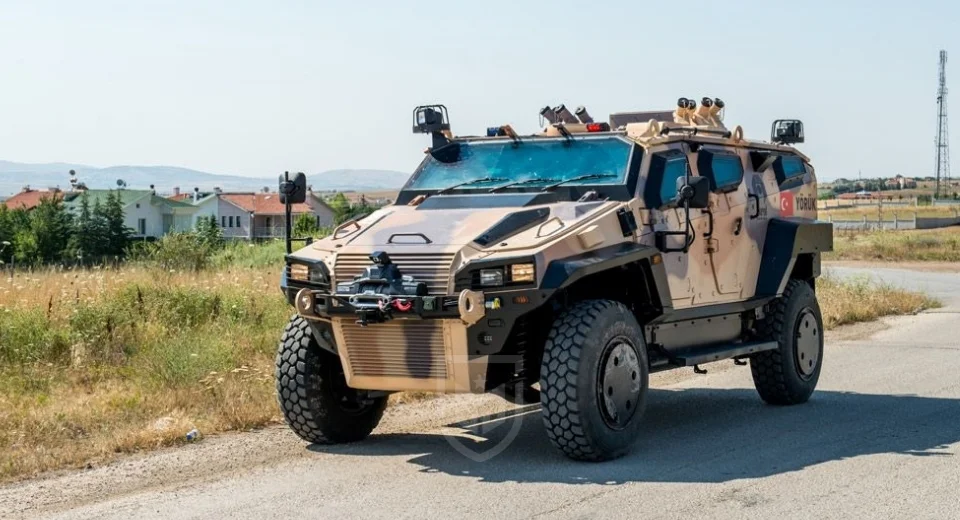

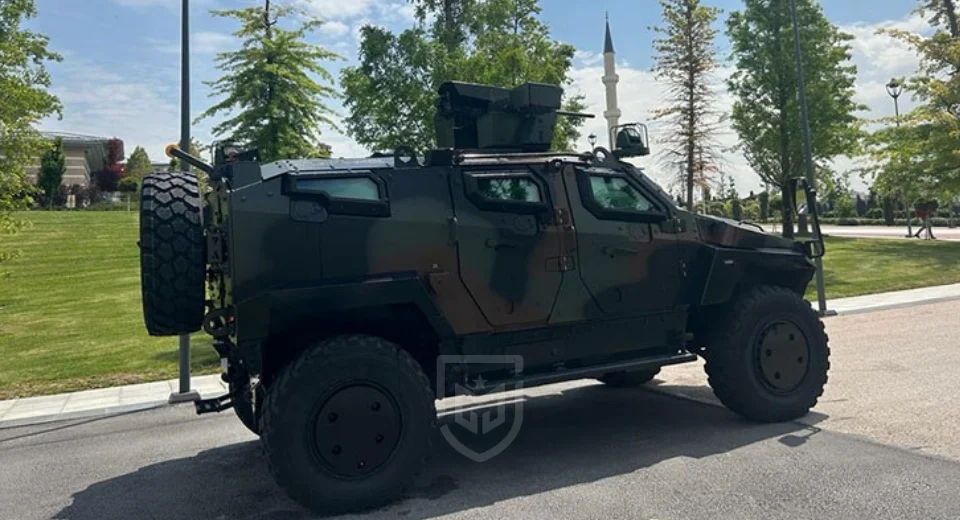

YÖRÜK 4×4 was engineered to meet the operational needs of modern battlefields characterized by asymmetric threats, high mobility requirements, and rapid reaction tempos. Its V-shaped monocoque armored hull is designed to deflect blast energy away from the crew compartment, significantly improving survivability against mines, IEDs, and lateral explosions while maintaining a low overall vehicle mass.

The vehicle’s modular armor architecture allows users to scale ballistic and mine protection levels according to mission risk profiles. This approach enables a single platform to operate effectively across low-intensity security missions as well as high-threat combat environments.

From a doctrinal perspective, YÖRÜK 4×4 supports multi-role force structures. It can function as an armored personnel carrier, reconnaissance vehicle, weapons or air-defense system carrier, and command or patrol platform. Its open-architecture design facilitates integration with modern battlefield systems, including remote weapon stations, sensors, and command-and-control networks.

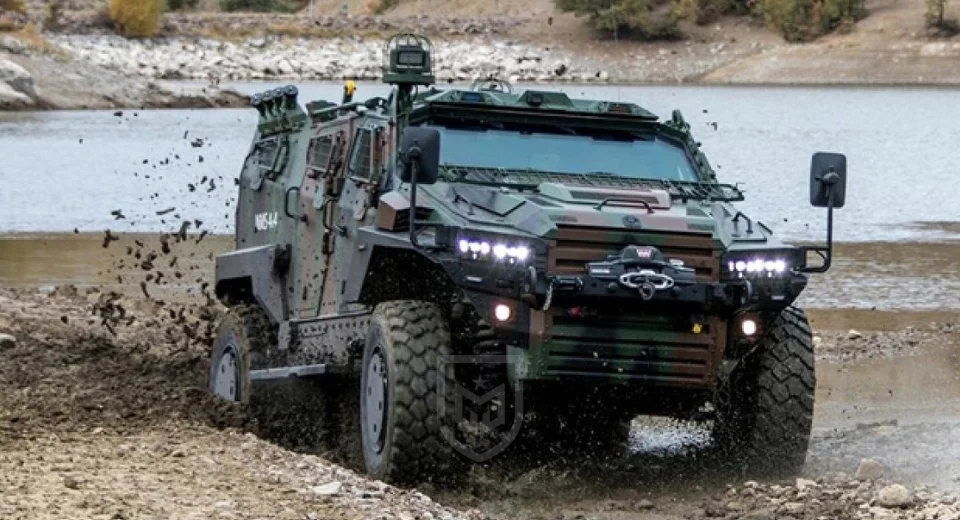

Recent improvements in the drivetrain and suspension systems enhance performance across diverse terrain types, ensuring high speed, maneuverability, and stability. A low center of gravity contributes to excellent road holding and off-road agility, making YÖRÜK 4×4 particularly suitable for rapid deployment and maneuver warfare concepts.

Detailed Technical Information

Dimensions and Weight

• Configuration: 4×4 tactical wheeled armored vehicle
• Combat Weight: Approximately 8–10 tons (depending on armor and mission configuration)
• Crew Capacity: Driver + commander + up to 7 personnel (configuration-dependent)
• Hull Type: V-shaped monocoque armored hull

Powertrain and Mobility

• Engine: Diesel engine, approx. 300 hp
• Transmission: Automatic, full-time 4×4
• Maximum Speed: ~140 km/h
• Operational Range: ~700 km
• Suspension: Independent front and rear suspension
• Off-Road Capability:
  • High gradient and side-slope performance
  • Trench, vertical obstacle, and shallow water crossing capability

Protection

• Ballistic Protection: Modular, scalable armor (STANAG 4569-compliant options available; exact levels depend on configuration)
• Mine & IED Protection: V-shaped hull optimized for blast deflection
• Lateral Blast Resistance: Enhanced protection against side explosions and EYP/IED threats

Note: Exact protection levels beyond publicly released standards are not publicly disclosed.

Weapon and System Integration

• Remote Weapon Stations (RWS):
  • 7.62 mm and 12.7 mm machine guns
  • 40 mm automatic grenade launcher
• Mission Modules:
  • Air-defense system carrier
  • Anti-tank guided missile (ATGM) integration
  • Reconnaissance and surveillance variants
• Optional Systems:
  • Central tire inflation system
  • Day/night cameras and situational awareness systems
  • Winch, fire-suppression systems, and CBRN-related options

Command, Control, and Networking

• Designed for integration with modern C2 systems and battlefield networks
• Open architecture supports national and NATO-compatible subsystems (public details limited)

Frequently Asked Questions

What is YÖRÜK 4×4 used for?

YÖRÜK 4×4 is designed for tactical missions including armored troop transport, reconnaissance, patrol, weapons carriage, and air-defense support in both military and internal security roles.

What level of protection does it provide?

• The vehicle offers scalable ballistic and mine protection through a modular armor system. Publicly available information indicates compatibility with STANAG 4569 standards, depending on configuration.

How mobile is YÖRÜK 4×4?

• With a powerful engine, low center of gravity, and advanced suspension, YÖRÜK 4×4 delivers high on-road speed and excellent off-road maneuverability across rugged terrain.

How many personnel can it carry?

• Typical configurations allow for a driver, commander, and up to seven additional personnel, depending on mission equipment.

Which weapon systems can be integrated?

• The platform supports remote weapon stations with 7.62 mm, 12.7 mm machine guns, 40 mm grenade launchers, and mission-specific systems such as ATGMs or short-range air-defense modules.

Is it suitable for asymmetric warfare?

• Yes. Its V-shaped hull, modular armor, and high mobility make YÖRÜK 4×4 particularly well-suited for asymmetric threats, including mines, IEDs, and ambush scenarios.
